SHANGHAI DOLI PHOTOGRAPHIC EQUIPMENT CO.,LTD.
|

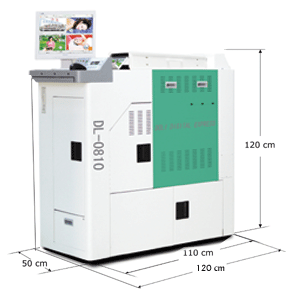

DL- 0810 Digital Minilab |
|
Technical Specifications: |
|
Type:
Digital printer processor |
|
Light source:
LED |
|
Exposure:
LCD panel |
|
Paper width:
9~15cm(3R~6R) |
|
Paper advance:
9~23cm |
|
Print size:
3.5"X5" ~6"X9" (15X23cm) |
|
Paper feeding:
load and rewind automatically |
|
Processing technique:
RA-4 (equivalent) |
|
Processing capacity:
~500prints/hr (10X15cm) |
|
Paper transport:
Alternative roller transport, first cut then
print
vacuum exposure platform, output one by one
|
|
Processing time:
2'25" (CD 30S) |
|
Acceptable paper:
All types of photographic paper |
|
Operation hint:
Operation and trouble shooting info |
|
Chemical replenishment:
Automatic |
|
Tank volume:
CD: 7L, BF: 7L, STB: 4L. |
|
|
|
Replenisher tank volume:
CD:10L, BF:10L, STB: 10L |
|
Weight:
270Kg(without chemicals) |
|
Power supply:
AC210-230V, 50/60Hz |
|
Current:
12A |
|
Power (est. maximum):
5 KW |
|
الى كافة الوزارات
والشركات والمؤسسات الحكومية
الأن بأستطاعتكم تنفيذ
كافة المطبوعات الدعائية والحملات الاعلانية بأنفسكم
|
UNIVERSAL LAB DOLI -
DL-3620
|
|
Technical specifications |
|
Type:
Digital printer processor |
|
Light source:
LED Matrix |
|
Exposure:
LCD panel |
|
Paper width:
9~62cm (3R~24.5R) |
|
Paper length:
9~91cm |
|
Print size:
up to 62x91cm |
|
Processing speed:
~ 500 prints/h (10X15cm) |
|
Paper feeding:
load and rewind automatically |
|
Processing technique:
RA-4 (equivalent) |
|
Processing time:
3'10" (CD 45Sec) |
|
Acceptable paper:
All types of photographic paper |
|
Operation hint:
operation and trouble shooting prompt |
|
Back printing:
photo information, data or commercial log |
|
Chemical replenishment:
automatic |
|
Replenisher tank volume:
CD: 10L, BF: 10L, STB: 10L |
|
Tank volume:
CD: 23L , BF: 23L, STB1: 10.3L, STB2: 10.3L,
STB3: 10.3L |
|
Weight:
950 kg (without chemicals) |
|
Power supply:
AC220V-230V, 50/60Hz |
|
Current:
Maximum 30 A |
|
Power:
(est. maximum): 8.5 KW |
|
|
DL-2300
Digital Minilab |
|
Technical specifications |
|
Type:
Digital printer processor |
|
Light source
: LED |
|
Exposure:
LCD panel |
|
Paper width:
9~30cm(3R~12R) |
|
Paper advance:
9~45cm |
|
Print size:
up to 30X45cm |
|
Output resolution:
520dpi |
|
Processing speed:
650 prints/h (10X15cm) |
|
Paper feeding:
load and rewind automatically |
|
Processing technique:
RA-4(equivlent) |
|
Processing time:
3'02"(CD 30Sec) |
|
Acceptable paper:
All types of photographic paper |
|
Operation hint:
operation and trouble shooting prompt |
|
Back printing:
photo information,data or commercial log |
|
Chemical replenishment:
automatic |
|
Replenisher tank volume:
CD: 6L, BF: 6L, STB:6L |
|
Tank volume:
CD:11.3L, BF:11.3L, STB1:10.6L, STB2:10.8L,
STB3: 11L |
|
Weight:
590kg(without chemicals) |
|
Power supply:
AC220V-230V, 50/60Hz |
|
Current:
Maximum 12A |
|
Power:
(est. maximum): 5 KW |
|
|
 |
 |
|
DLA18 Doli Album
Maker |
Heat glue album
machine |
|
 |
 |
 |
|
Album |
Cool glue album
machine |
Album |
